| 単純梁 2連続梁 中間連結金具使用時のたわみ軽減 | ||
 |
 |
|

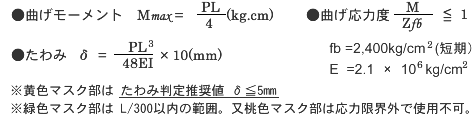

| 単純梁４０型（ＭＦ254）t=2.0、1.6 Z=3.48（3.24）㎝3、I=7.15（7.0）㎝4 | （ ）内数値は全て板厚1.6㎜ |
| 許容 スパン ( L )㎝ |
体重 ｋｇ | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 120 | 150 | ||||||||||||||||
| 応力度判定 | たわみ判定 （㎜） |
対応スパン （ L/ δ） |
応力度判定 | たわみ判定 （㎜） |
対応スパン （ L/ δ） |
応力度判定 | たわみ判定 （㎜） |
対応スパン （ L/ δ） |
||||||||||
| 100 | 0.30 | (0.32) | 1.4 | (1.42) | 720 | (705.1) | 0.36 | (0.39) | 1.7 | (1.70) | 600 | (587.6) | 0.45 | (0.48) | 2.1 | (2.13) | 480 | (470.1) |
| 110 | 0.33 | (0.35) | 1.8 | (1.89) | 595 | (582.7) | 0.40 | (0.42) | 2.2 | (2.27) | 496 | (485.6) | 0.49 | (0.53) | 2.8 | (2.83) | 397 | (388.5) |
| 120 | 0.36 | (0.39) | 2.4 | (2.45) | 500 | (489.7) | 0.43 | (0.46) | 2.9 | (2.94) | 417 | (408.1) | 0.54 | (0.58) | 3.6 | (3.68) | 333 | (326.4) |
| 130 | 0.39 | (0.42) | 3.1 | (3.12) | 426 | (417.2) | 0.47 | (0.50) | 3.7 | (3.74) | 355 | (347.7) | 0.58 | (0.63) | 4.6 | (4.67) | 284 | (278.2) |
| 140 | 0.42 | (0.45) | 3.8 | (3.89) | 367 | (359.8) | 0.50 | (0.54) | 4.6 | (4.67) | 306 | (299.8) | 0.63 | (0.68) | 5.7 | (5.84) | 245 | (239.8) |
| 150 | 0.45 | (0.48) | 4.7 | (4.79) | 320 | (313.4) | 0.54 | (0.58) | 5.6 | (5.74) | 267 | (261.2) | 0.67 | (0.72) | 7.0 | (7.18) | 213 | (208.9) |
| 160 | 0.48 | (0.51) | 5.7 | (5.81) | 281 | (275.4) | 0.58 | (0.62) | 6.8 | (6.97) | 234 | (229.5) | 0.72 | (0.77) | 8.5 | (8.71) | 188 | (183.6) |
| 170 | 0.51 | (0.55) | 6.8 | (6.97) | 249 | (244.0) | 0.61 | (0.66) | 8.2 | (8.36) | 208 | (203.3) | 0.76 | (0.82) | 10.2 | (10.45) | 166 | (162.7) |
| 180 | 0.54 | (0.58) | 8.1 | (8.27) | 222 | (217.6) | 0.65 | (0.69) | 9.7 | (9.93) | 185 | (181.4) | 0.81 | (0.87) | 12.1 | (12.41) | 148 | (145.1) |
| 190 | 0.57 | (0.61) | 9.5 | (9.73) | 200 | (195.3) | 0.68 | (0.73) | 11.4 | (11.67) | 166 | (162.8) | 0.85 | (0.92) | 14.3 | (14.59) | 133 | (130.2) |
| 200 | 0.60 | (0.64) | 11.1 | (11.35) | 180 | (176.3) | 0.72 | (0.77) | 13.3 | (13.61) | 150 | (146.9) | 0.90 | (0.97) | 16.7 | (17.02) | 120 | (117.5) |
| 210 | 0.63 | (0.68) | 12.9 | (13.13) | 163 | (159.9) | 0.75 | (0.81) | 15.4 | (15.76) | 136 | (133.2) | 0.94 | (1.01) | 19.3 | (19.70) | 109 | (106.6) |
| 220 | 0.66 | (0.71) | 14.8 | (15.10) | 149 | (145.7) | 0.79 | (0.85) | 17.7 | (18.12) | 124 | (121.4) | 0.99 | (1.06) | 22.2 | (22.65) | 99 | (97.1) |
| 230 | 0.69 | (0.74) | 16.9 | (17.26) | 136 | (133.3) | 0.83 | (0.89) | 20.3 | (20.71) | 113 | (111.1) | 1.03 | (1.11) | 25.3 | (25.88) | 91 | (88.9) |
| 240 | 0.72 | (0.77) | 19.2 | (19.61) | 125 | (122.4) | 0.86 | (0.93) | 23.0 | (23.53) | 104 | (102.0) | 1.08 | (1.16) | 28.8 | (29.41) | 83 | (81.6) |
| 250 | 0.75 | (0.80) | 21.7 | (22.16) | 115 | (112.8) | 0.90 | (0.97) | 26.0 | (26.59) | 96 | (94.0) | 1.12 | (1.21) | 32.5 | (33.24) | 77 | (75.2) |
| 単純梁６０型（ＭＦ256）t=2.0、1.6 Z=6.54（5.47）㎝3、I=20.5（17.2）㎝4 | （ ）内数値は全て板厚1.6㎜ |
| 許容 スパン （L）㎝ |
体重 ｋｇ | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 120 | 150 | ||||||||||||||||
| 応力度判定 | たわみ判定 （㎜） |
対応スパン （L/δ） |
応力度判定 | たわみ判定 （㎜） |
対応スパン （L/δ） |
応力度判定 | たわみ判定 （㎜） |
対応スパン （L/δ） |
||||||||||
| 150 | 0.24 | (0.29) | 1.6 | (1.95) | 918 | (770.0) | 0.29 | (0.34) | 2.0 | (2.34) | 765 | (641.7) | 0.36 | (0.43) | 2.5 | (2.92) | 612 | (513.4) |
| 160 | 0.26 | (0.30) | 2.0 | (2.36) | 807 | (676.8) | 0.31 | (0.37) | 2.4 | (2.84) | 672 | (564.0) | 0.38 | (0.46) | 3.0 | (3.55) | 538 | (451.2) |
| 170 | 0.27 | (0.32) | 2.4 | (2.84) | 715 | (599.5) | 0.33 | (0.39) | 2.9 | (3.40) | 595 | (499.6) | 0.41 | (0.49) | 3.6 | (4.25) | 476 | (399.7) |
| 180 | 0.29 | (0.34) | 2.8 | (3.37) | 637 | (534.7) | 0.34 | (0.41) | 3.4 | (4.04) | 531 | (445.6) | 0.43 | (0.51) | 4.2 | (5.05) | 425 | (356.5) |
| 190 | 0.30 | (0.36) | 3.3 | (3.96) | 572 | (479.9) | 0.36 | (0.43) | 4.0 | (4.75) | 477 | (400.0) | 0.45 | (0.54) | 5.0 | (5.94) | 381 | (320.0) |
| 200 | 0.32 | (0.38) | 3.9 | (4.62) | 516 | (433.1) | 0.38 | (0.46) | 4.6 | (5.54) | 430 | (361.0) | 0.48 | (0.57) | 5.8 | (6.93) | 344 | (288.8) |
| 210 | 0.33 | (0.40) | 4.5 | (5.35) | 468 | (392.9) | 0.40 | (0.48) | 5.4 | (6.41) | 390 | (327.4) | 0.50 | (0.60) | 6.7 | (8.02) | 312 | (261.9) |
| 220 | 0.35 | (0.42) | 5.2 | (6.15) | 427 | (358.0) | 0.42 | (0.50) | 6.2 | (7.37) | 356 | (298.3) | 0.53 | (0.63) | 7.7 | (9.22) | 284 | (238.6) |
| 230 | 0.37 | (0.44) | 5.9 | (7.02) | 390 | (327.5) | 0.44 | (0.53) | 7.1 | (8.43) | 325 | (272.9) | 0.55 | (0.66) | 8.8 | (10.53) | 260 | (218.3) |
| 240 | 0.38 | (0.46) | 6.7 | (7.98) | 359 | (300.8) | 0.46 | (0.55) | 8.0 | (9.57) | 299 | (250.7) | 0.57 | (0.69) | 10.0 | (11.97) | 239 | (200.5) |
| 250 | 0.40 | (0.48) | 7.6 | (9.02) | 330 | (277.2) | 0.48 | (0.57) | 9.1 | (10.82) | 275 | (231.0) | 0.60 | (0.71) | 11.3 | (13.53) | 220 | (184.8) |
| 260 | 0.41 | (0.50) | 8.5 | (10.14) | 305 | (256.3) | 0.50 | (0.59) | 10.2 | (12.17) | 255 | (213.6) | 0.62 | (0.74) | 12.8 | (15.22) | 204 | (170.9) |
| 270 | 0.43 | (0.51) | 9.5 | (11.36) | 283 | (237.7) | 0.52 | (0.62) | 11.4 | (13.63) | 236 | (198.1) | 0.65 | (0.77) | 14.3 | (17.04) | 189 | (158.4) |
| 280 | 0.45 | (0.53) | 10.6 | (12.67) | 263 | (221.0) | 0.54 | (0.64) | 12.8 | (15.20) | 219 | (184.2) | 0.67 | (0.80) | 15.9 | (19.01) | 176 | (147.3) |
| 290 | 0.46 | (0.55) | 11.8 | (14.08) | 246 | (206.0) | 0.55 | (0.66) | 14.2 | (16.89) | 205 | (171.7) | 0.69 | (0.83) | 17.7 | (21.11) | 164 | (137.3) |
| 300 | 0.48 | (0.57) | 13.1 | (15.58) | 229 | (192.5) | 0.57 | (0.69) | 15.7 | (18.70) | 191 | (160.4) | 0.72 | (0.86) | 19.6 | (23.38) | 153 | (128.3) |
| 310 | 0.49 | (0.59) | 14.4 | (17.19) | 215 | (180.3) | 0.59 | (0.71) | 17.3 | (20.63) | 179 | (150.2) | 0.74 | (0.89) | 21.6 | (25.79) | 143 | (120.2) |
| 320 | 0.51 | (0.61) | 15.9 | (18.91) | 202 | (169.2) | 0.61 | (0.73) | 19.0 | (22.70) | 168 | (141.0) | 0.77 | (0.91) | 23.8 | (28.37) | 134 | (112.8) |
| 330 | 0.53 | (0.63) | 17.4 | (20.74) | 190 | (159.1) | 0.63 | (0.75) | 20.9 | (24.89) | 158 | (132.6) | 0.79 | (0.94) | 26.1 | (31.11) | 126 | (106.1) |
| 340 | 0.54 | (0.65) | 19.0 | (22.69) | 179 | (149.9) | 0.65 | (0.78) | 22.8 | (27.22) | 149 | (124.9) | 0.81 | (0.97) | 28.6 | (34.03) | 119 | (99.9) |
| 350 | 0.56 | (0.67) | 20.8 | (24.75) | 169 | (141.4) | 0.67 | (0.80) | 24.9 | (29.70) | 140 | (117.9) | 0.84 | (1.00) | 31.1 | (37.12) | 112 | (94.3) |
 |
||
| 単純梁 2連続梁 中間連結金具使用時のたわみ軽減 | ||
 |
 |
|

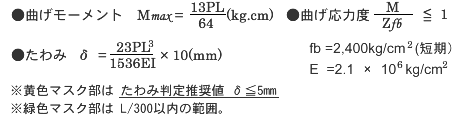

| ２連続梁４０型（ＭＦ254）t=2.0、1.6 Z=3.48（3.24）㎝3、I=7.15（7.0）cm4 | （ ）内数値は全て板厚1.6㎜ |
| 許容 スパン （L）㎝ |
体重 ｋｇ | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 120 | 150 | ||||||||||||||||
| 応力度判定 | たわみ判定 （㎜） |
対応スパン （L/δ） |
応力度判定 | たわみ判定 （㎜） |
対応スパン （L/δ） |
応力度判定 | たわみ判定 （㎜） |
対応スパン （L/δ） |
||||||||||
| 100 | 0.24 | (0.26) | 1.0 | (1.02) | 1,002 | (981.0) | 0.29 | (0.31) | 1.2 | (1.22) | 835 | (817.5) | 0.37 | (0.39) | 1.5 | (1.53) | 668 | (654.0) |
| 110 | 0.27 | (0.29) | 1.3 | (1.36) | 828 | (810.8) | 0.32 | (0.35) | 1.6 | (1.63) | 690 | (675.6) | 0.40 | (0.43) | 2.0 | (2.04) | 552 | (540.5) |
| 120 | 0.29 | (0.31) | 1.7 | (1.76) | 696 | (681.3) | 0.35 | (0.38) | 2.1 | (2.11) | 580 | (567.7) | 0.44 | (0.47) | 2.6 | (2.64) | 464 | (454.2) |
| 130 | 0.32 | (0.34) | 2.2 | (2.24) | 593 | (580.5) | 0.38 | (0.41) | 2.6 | (2.69) | 494 | (483.7) | 0.47 | (0.51) | 3.3 | (3.36) | 395 | (387.0) |
| 140 | 0.34 | (0.37) | 2.7 | (2.80) | 511 | (500.5) | 0.41 | (0.44) | 3.3 | (3.36) | 426 | (417.1) | 0.51 | (0.55) | 4.1 | (4.20) | 341 | (333.7) |
| 150 | 0.37 | (0.39) | 3.4 | (3.44) | 445 | (436.0) | 0.44 | (0.47) | 4.0 | (4.13) | 371 | (363.3) | 0.55 | (0.59) | 5.1 | (5.16) | 297 | (290.7) |
| 160 | 0.39 | (0.42) | 4.1 | (4.18) | 391 | (383.2) | 0.47 | (0.50) | 4.9 | (5.01) | 326 | (319.3) | 0.58 | (0.63) | 6.1 | (6.26) | 261 | (255.5) |
| 170 | 0.41 | (0.44) | 4.9 | (5.01) | 347 | (339.5) | 0.50 | (0.53) | 5.9 | (6.01) | 289 | (282.9) | 0.62 | (0.67) | 7.4 | (7.51) | 231 | (226.3) |
| 180 | 0.44 | (0.47) | 5.8 | (5.94) | 309 | (302.8) | 0.53 | (0.56) | 7.0 | (7.13) | 258 | (252.3) | 0.66 | (0.71) | 8.7 | (8.92) | 206 | (201.9) |
| 190 | 0.46 | (0.50) | 6.8 | (6.99) | 278 | (271.8) | 0.55 | (0.60) | 8.2 | (8.39) | 231 | (226.5) | 0.69 | (0.74) | 10.3 | (10.49) | 185 | (181.2) |
| 200 | 0.49 | (0.52) | 8.0 | (8.15) | 251 | (245.3) | 0.58 | (0.63) | 9.6 | (9.79) | 209 | (204.4) | 0.73 | (0.78) | 12.0 | (12.23) | 167 | (163.5) |
| 210 | 0.51 | (0.55) | 9.2 | (9.44) | 227 | (222.5) | 0.61 | (0.66) | 11.1 | (11.33) | 189 | (185.4) | 0.77 | (0.82) | 13.9 | (14.16) | 151 | (148.3) |
| 220 | 0.54 | (0.58) | 10.6 | (10.85) | 207 | (202.7) | 0.64 | (0.69) | 12.8 | (13.02) | 173 | (168.9) | 0.80 | (0.86) | 15.9 | (16.28) | 138 | (135.1) |
| 230 | 0.56 | (0.60) | 12.1 | (12.40) | 189 | (185.5) | 0.67 | (0.72) | 14.6 | (14.88) | 158 | (154.5) | 0.84 | (0.90) | 18.2 | (18.60) | 126 | (123.6) |
| 240 | 0.58 | (0.63) | 13.8 | (14.09) | 174 | (170.3) | 0.70 | (0.75) | 16.6 | (16.91) | 145 | (141.9) | 0.88 | (0.94) | 20.7 | (21.14) | 116 | (113.5) |
| 250 | 0.61 | (0.65) | 15.6 | (15.93) | 160 | (157.0) | 0.73 | (0.78) | 18.7 | (19.11) | 134 | (130.8) | 0.91 | (0.98) | 23.4 | (23.89) | 107 | (104.6) |
| ２連続梁６０型（ＭＦ256）t=2.0、1.6 Z=6.54（5.47）㎝3、I=20.5（17.2）cm4 | （ ）内数値は全て板厚1.6㎜ |
| 許容 スパン （L）㎝ |
体重 ｋｇ | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 120 | 150 | ||||||||||||||||
| 応力度判定 | たわみ判定（㎜） | 対応スパン （L/δ） |
応力度判定 | たわみ判定（㎜） | 対応スパン （L/δ） |
応力度判定 | たわみ判定（㎜） | 対応スパン （L/δ） |
||||||||||
| 150 | 0.19 | (0.23) | 1.2 | (1.40) | 1,277 | (1071.4) | 0.23 | (0.28) | 1.4 | (1.68) | 1,064 | (892.8) | 0.29 | (0.35) | 1.8 | (2.10) | 851 | (714.2) |
| 160 | 0.21 | (0.25) | 1.4 | (1.70) | 1,122 | (941.6) | 0.25 | (0.30) | 1.7 | (2.04) | 935 | (784.7) | 0.31 | (0.37) | 2.1 | (2.55) | 748 | (627.7) |
| 170 | 0.22 | (0.26) | 1.7 | (2.04) | 994 | (834.1) | 0.26 | (0.32) | 2.1 | (2.45) | 828 | (695.1) | 0.33 | (0.39) | 2.6 | (3.06) | 663 | (556.1) |
| 180 | 0.23 | (0.28) | 2.0 | (2.42) | 887 | (744.0) | 0.28 | (0.33) | 2.4 | (2.90) | 739 | (620.0) | 0.35 | (0.42) | 3.0 | (3.63) | 591 | (496.0) |
| 190 | 0.25 | (0.29) | 2.4 | (2.85) | 796 | (667.7) | 0.30 | (0.35) | 2.9 | (3.41) | 663 | (556.5) | 0.37 | (0.44) | 3.6 | (4.27) | 531 | (445.2) |
| 200 | 0.26 | (0.31) | 2.8 | (3.32) | 718 | (602.6) | 0.31 | (0.37) | 3.3 | (3.98) | 599 | (502.2) | 0.39 | (0.46) | 4.2 | (4.98) | 479 | (401.8) |
| 210 | 0.27 | (0.33) | 3.2 | (3.84) | 651 | (546.6) | 0.33 | (0.39) | 3.9 | (4.61) | 543 | (455.5) | 0.41 | (0.49) | 4.8 | (5.76) | 434 | (364.4) |
| 220 | 0.28 | (0.34) | 3.7 | (4.42) | 594 | (498.0) | 0.34 | (0.41) | 4.4 | (5.30) | 495 | (415.0) | 0.43 | (0.51) | 5.6 | (6.63) | 396 | (332.0) |
| 230 | 0.30 | (0.36) | 4.2 | (5.05) | 543 | (455.7) | 0.36 | (0.43) | 5.1 | (6.06) | 453 | (379.7) | 0.45 | (0.53) | 6.4 | (7.57) | 362 | (303.8) |
| 240 | 0.31 | (0.37) | 4.8 | (5.73) | 499 | (418.5) | 0.37 | (0.45) | 5.8 | (6.88) | 416 | (348.7) | 0.47 | (0.56) | 7.2 | (8.60) | 333 | (279.0) |
| 250 | 0.32 | (0.39) | 5.4 | (6.48) | 460 | (385.7) | 0.39 | (0.46) | 6.5 | (7.78) | 383 | (321.4) | 0.49 | (0.58) | 8.2 | (9.72) | 306 | (257.1) |
| 260 | 0.34 | (0.40) | 6.1 | (7.29) | 425 | (356.6) | 0.40 | (0.48) | 7.3 | (8.75) | 354 | (297.2) | 0.51 | (0.60) | 9.2 | (10.94) | 283 | (237.7) |
| 270 | 0.35 | (0.42) | 6.9 | (8.17) | 394 | (330.7) | 0.42 | (0.50) | 8.2 | (9.80) | 328 | (275.6) | 0.52 | (0.63) | 10.3 | (12.25) | 263 | (220.4) |
| 280 | 0.36 | (0.43) | 7.6 | (9.11) | 366 | (307.5) | 0.44 | (0.52) | 9.2 | (10.93) | 305 | (256.2) | 0.54 | (0.65) | 11.5 | (13.66) | 244 | (205.0) |
| 290 | 0.38 | (0.45) | 8.5 | (10.12) | 342 | (286.6) | 0.45 | (0.54) | 10.2 | (12.14) | 285 | (238.9) | 0.56 | (0.67) | 12.7 | (15.18) | 228 | (191.1) |
| 300 | 0.39 | (0.46) | 9.4 | (11.20) | 319 | (267.8) | 0.47 | (0.56) | 11.3 | (13.44) | 266 | (223.2) | 0.58 | (0.70) | 14.1 | (16.80) | 213 | (178.6) |
| 310 | 0.40 | (0.48) | 10.4 | (12.36) | 299 | (250.8) | 0.48 | (0.58) | 12.4 | (14.83) | 249 | (209.0) | 0.60 | (0.72) | 15.6 | (18.54) | 199 | (167.2) |
| 320 | 0.41 | (0.50) | 11.4 | (13.59) | 281 | (235.4) | 0.50 | (0.59) | 13.7 | (16.31) | 234 | (196.2) | 0.62 | (0.74) | 17.1 | (20.39) | 187 | (156.9) |
| 330 | 0.43 | (0.51) | 12.5 | (14.91) | 264 | (221.4) | 0.51 | (0.61) | 15.0 | (17.89) | 220 | (184.5) | 0.64 | (0.77) | 18.8 | (22.36) | 176 | (147.6) |
| 340 | 0.44 | (0.53) | 13.7 | (16.30) | 249 | (208.5) | 0.53 | (0.63) | 16.4 | (19.57) | 207 | (173.8) | 0.66 | (0.79) | 20.5 | (24.46) | 166 | (139.0) |
| 350 | 0.45 | (0.54) | 14.9 | (17.79) | 235 | (196.8) | 0.54 | (0.65) | 17.9 | (21.34) | 195 | (164.0) | 0.68 | (0.81) | 22.4 | (26.68) | 156 | (131.2) |
 |
